imagecolorallocatealpha

(PHP 4 >= 4.3.2, PHP 5)

imagecolorallocatealphaAllocate a color for an image

Beschreibung

int imagecolorallocatealpha ( resource $image , int $red , int $green , int $blue , int $alpha )

imagecolorallocatealpha() behaves identically to imagecolorallocate() with the addition of the transparency parameter alpha.

Parameter-Liste


Eine von den verschiedenen Erzeugungsfunktionen wie imagecreatetruecolor() gelieferte Grafikressource.

red

Value of red component.

green

Value of green component.

blue

Value of blue component.

alpha

A value between 0 and 127. 0 indicates completely opaque while 127 indicates completely transparent.

The colors parameters are integers between 0 and 255 or hexadecimals between 0x00 and 0xFF.

Rückgabewerte

A color identifier or FALSE if the allocation failed.

Warnung

Diese Funktion kann sowohl das boolsche FALSE zurückliefern, als auch einen nicht-boolschen Wert, wie zum Beispiel 0 oder "", der von einem einfachen if-Statement als FALSE ausgewertet wird. Weitere Informationen entnehmen Sie bitte dem Abschnitt über die boolschen Typen. Benutzen Sie deshalb den === Operator, um den Rückgabewert dieser Funktion zu überprüfen.

Changelog

Version Beschreibung
Prior to 5.1.3 Returns -1 if the allocation failed.

Beispiele

Beispiel #1 Example of using imagecolorallocatealpha()

<?php
$size
300;
$image=imagecreatetruecolor($size$size);

// something to get a white background with black border
$back imagecolorallocate($image255255255);
$border imagecolorallocate($image000);
imagefilledrectangle($image00$size 1$size 1$back);
imagerectangle($image00$size 1$size 1$border);

$yellow_x 100;
$yellow_y 75;
$red_x    120;
$red_y    165;
$blue_x   187;
$blue_y   125;
$radius   150;

// allocate colors with alpha values
$yellow imagecolorallocatealpha($image255255075);
$red    imagecolorallocatealpha($image2550075);
$blue   imagecolorallocatealpha($image0025575);

// drawing 3 overlapped circle
imagefilledellipse($image$yellow_x$yellow_y$radius$radius$yellow);
imagefilledellipse($image$red_x$red_y$radius$radius$red);
imagefilledellipse($image$blue_x$blue_y$radius$radius$blue);

// don't forget to output a correct header!
header('Content-type: image/png');

// and finally, output the result
imagepng($image);
imagedestroy($image);
?>

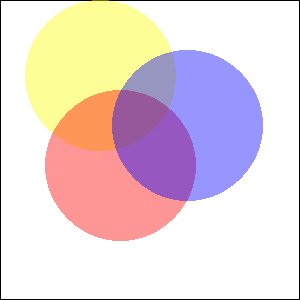

Das oben gezeigte Beispiel erzeugt eine ähnliche Ausgabe wie:

Output of example : Example of using imagecolorallocatealpha()

Anmerkungen

Hinweis: Diese Funktion setzt die GD-Bibliothek in der Version 2.0.1 oder höher (empfohlen wird mindestens 2.0.28) voraus.

Siehe auch


3 BenutzerBeiträge:
- Beiträge aktualisieren...
fjoggen at gmail dot com
29.11.2007 16:19
If you need to calculate the integer representation of a color with an alpha channel, without initialising an image and using the imagecolorallocatealpha function. Then this function might be of some help:

<?php
function alphaColor($hexColor,$alpha)
{
        return
bindec(decbin($alpha).decbin(hexdec($hexColor));
}

echo
alphaColor("FFFFFF",127);
?>
eric (at) junioronline.us
25.01.2006 10:41
If you only wish to extract the alpha value for a color, you can simply extract it like so:

<?php

    $color
= imagecolorat($im, 50, 50);

$alpha = $color >> 24;

?>

It actually shifts off the first 24 bits (where 8x3 are used for each color), and returns the remaining 7 allocated bits (commonly used for alpha)
fchristl at hotmail dot com
19.09.2003 21:55
Check out this Source, it's a little funny feature showing you, for what imagecolorallocatealpha() is used:

<?php
$im
=imagecreatetruecolor(300,300);
$white=imagecolorallocate($im,255,255,255);
imagefilledrectangle($im,0,0,imagesx($im),imagesy($im),$white);
for(
$i=0;$i<256;$i=$i+10)
{
$col=imagecolorallocatealpha($im,$i,$i,$i,ceil(rand(0,127)));
imagefilledellipse($im,$i,$i,$i,$i,$col);
}
header("content-type: image/png");
imagepng($im);
?>
